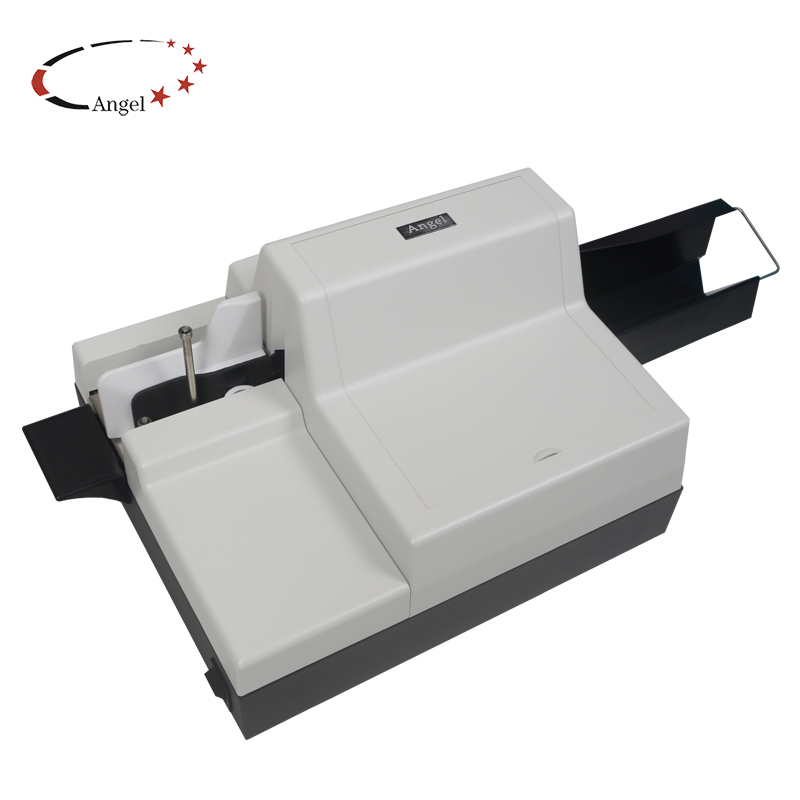

MICR Encoder AG2008E
|
Specifications |
|||
| Model | Micr type | AG2008E(MICR only, without ink-jet) | |
| Document
Feeder |
Type | Auto feeder | |
| Capacity | 250 documents (with 0.116 mm document) | ||
| MICR Encoder | Font | E13B or CMC7 (factory option) | |
| Encoding fields | All fields (Max 65 columns) | ||
| MICR ribbon type | Cassette one-time ribbon (65,000 characters/cassette) | ||
| Stacker | Capacity | 250 documents (with 0.116 mm document) | |
| Document
Specification |
Length | 152-230 mm | |
| Height | 70-110 mm | ||
| Thickness | 0.096-0.116 mm | ||
| Processing speed | 38 documents/min (encoding 12 MICR characters with inkjet printing ) | ||
| Dimension | 350W x 295D x 180H mm | ||
| Weight | 10kg | ||
| Power Supply | 100-240V(+/-10%), 50/60Hz | ||
| Noise Figure | 50 DBA | ||
| Working Environment | Temperature：-15℃-45℃ Humidity：15-85%RH | ||
| Communication Interface | RS232 & USB Optional | ||
※ All Specifications are subject to changes for improvement purposes without any prior notice
